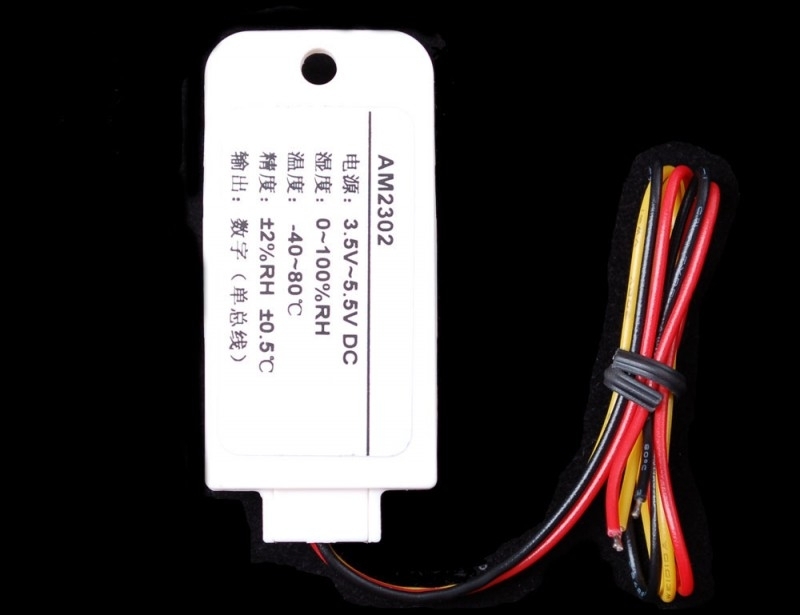

AM2302 (wired DHT22) temperature-humidity sensor
€ 12,50
(including VAT)
The AM2302 is a wired version of the DHT22, in a large plastic body. It is a basic, low-cost digital temperature and humidity sensor. It uses a capacitive humidity sensor and a thermistor to measure the surrounding air, and spits out a digital signal on the data pin (no analog input pins needed). Its fairly simple to use, but requires careful timing to grab data.
Technical details:
- Low cost
- 3 to 5V power and I/O
- 2.5mA max current use during conversion (while requesting data)
- Good for 0-100% humidity readings with 2-5% accuracy
- Good for -40 to 80°C temperature readings ±0.5°C accuracy
- No more than 0.5 Hz sampling rate (once every 2 seconds)
- Body size 27mm x 59mm x 13.5mm (1.05" x 2.32" x 0.53")
- 3 wires 23cm long (9")
- 27mm wide x 58.75mm tall x 13.30mm deep
Adafruit Tutorial for using the sensor can be found here
Our tutorial: VOC Electronics Wiki (NL only)
