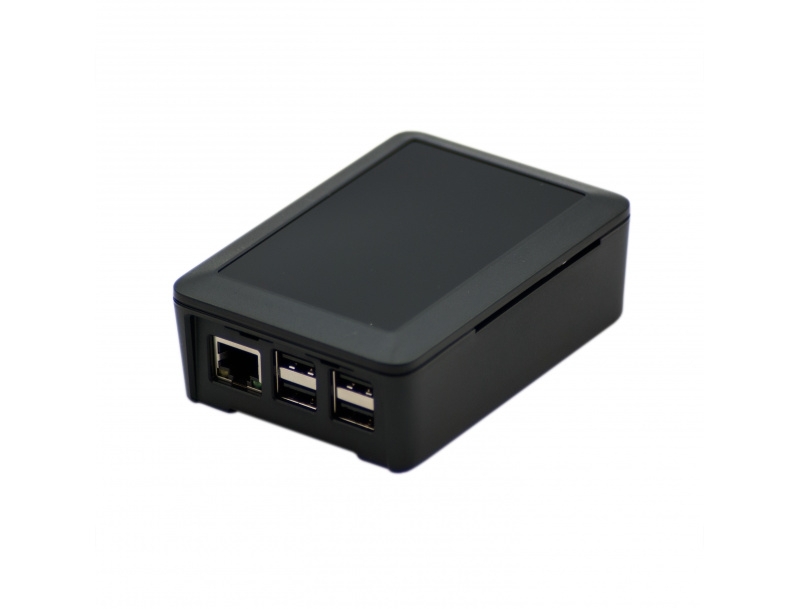

ModMyPi Modular RPi 2 Case (Black)
€ 9,95
(including VAT)
New from ModMyPi & Cyntech - The Modular Raspberry Pi 2 Model B case!
Our new deluxe Raspberry Pi 2 Model B case is a fully customisable and adaptable modular unit aimed to suit a range of Raspberry Pi applications. Designed with a stealth look and integrated LED lights pipes, it’s the perfect accessory to any Raspberry Pi enthusiast’s tool kit!
The ModMyPI Modular RPi 2 Case Features:
- Raspberry Pi 2 Model B and B+ Two Part (Lid & Base) Plastic Case
- LED Status Light Pipes
- Stealth Streamlined Look - Spouse Tested & Confirmed
- Clip Fit Raspberry Pi Mount with Optional Screw Locking (Included)
- Positive and Secure Case Locking via Screws (Included)
- Designed for Hacking - Extra Large Internal Room for Breakout Boards
- Airflow - Internal Volume Perfect for Adding Heat Sinks & Keeping your Pi Cool
- GPIO 40 Pin Ribbon Cable Slot
- CSI Camera Cable Cable Slot
- DSI LCD Video Cable Slot
- GPIO Fly-Through Cable Slot for Smart Power Supply Switches
- Additional Internal SD Card Holder

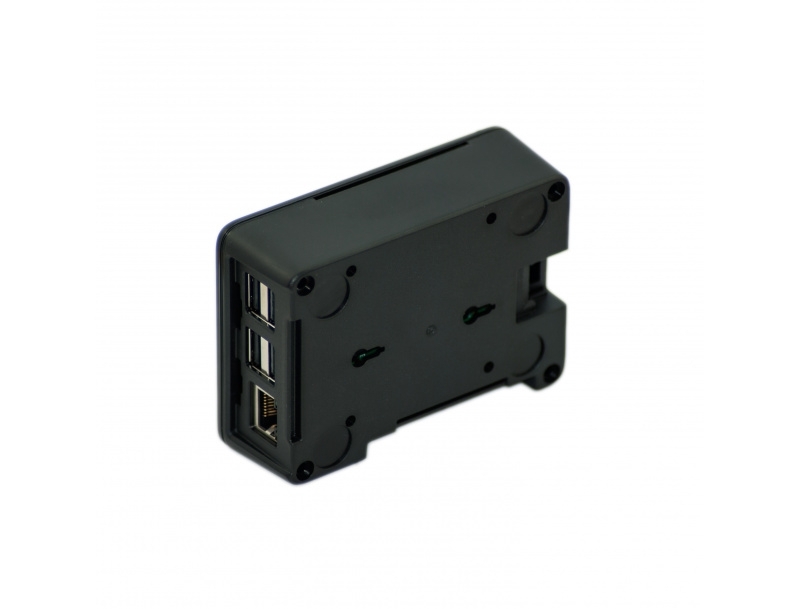

- In-Built Four Point 50mm M3 Mount & Two Point 40mm M3 Wall Mount Features
- Matt Finish Body with Gloss Cap
- Optical See-Through Window (Clear Version Only)
- Available in a Range of Colours Including Black, Blue, Clear, White and Raspberry
- Designed in the UK
- Strong & Durable ABS Plastic
Case Dimensions:
- Length: 104.95mm
- Width: 74.95mm
- Height: 36.00mm
Internal Dimensional Volume for Breakout Boards:
- Length: 90.00mm
- Width: 58.50mm
- Height*: 25.70mm (*Measured from Top of RPi PCB to Internal Top of Lid)
- Internal Volume HAT Compliant
Modular Add-On Options Include the Following:
- Micro SD Card Cover
- Flush, Lockable and Tamper-Proof.
- Secure your Micro SD Card from Probing Fingers
- Protect your Micro SD Card from Accidental Knocks & Bangs
- 10mm Stackable Spacers
- Makes Your Case Compatible with 99% of Breakout Boards
- Spacers Raise Internal Height by 10mm Enabling the Case to Grow with your Project
- Spacers can be Stacked Increasing Internal Height by up to 50mm or more!
- Great for Embedded Applications, and Hobbyist Projects
